CHAPTER 2CHAPTER 2

CHAPTER 2

HARDHARD

HARD

ARE INSTARE INST

ARE INST

ALLAALLA

ALLA

TIONTION

TION

2-12

PC-3744

Processor

Lock

Heatsink

Support

Lock

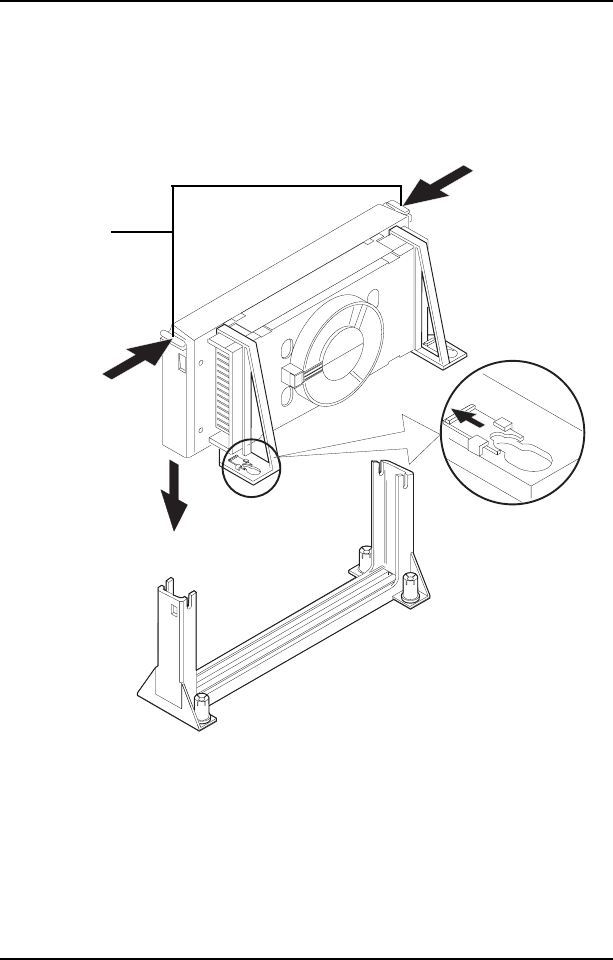

Step 5: Unlock the Processor Locks and Heat Sink Support Locks.

Push in the Processor Locks. Open the Heat Sink Support Locks.

Step 6: Insert the Processor like inserting a PCI or an ISA card.
